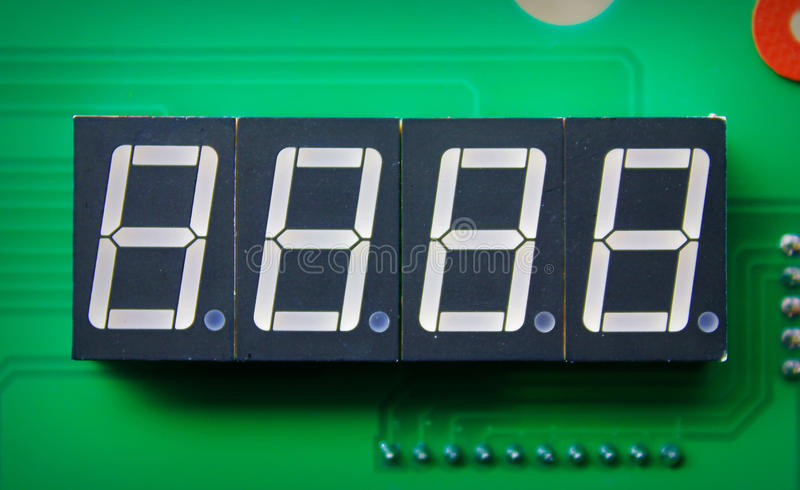

Fig: Seven segment display
In this tutorial i will discuss how to interface a seven segment display with PIC Microcontroller. You can also check out my previous post on Interfacing PIC Microcontroller with Relay.
A 7 Segment LED Display is a electronic device that contains an array of 8 individual LEDs. Each of the 8 segments that make up the display can be either be on the ON state or the OFF state. Depending on which LEDs are lit determines the character which is displayed on the LED. The LED can be made to show numerical digits from 0-9 and some characters. The versatility of a 7 segment display lies in the fact that it can be a numerical value indicator. LED displays are used in all types of products, including alarm clocks, scoreboards, and all other signs showing character outputs.
Types of 7 - Segment Displays:
Based on wiring and connection, there are two types of 7 - Segment display which are:
- Common - Cathode Display
- Common - Anode Display
LEDs have two terminals one is referred to as the Anode and the other is the Cathode. The Anode is the terminal that is usually connected to the positive voltage terminal while the Cathode is connected to the negative terminal of the supply. When the Cathodes of the array of eight (8) LEDs are connected together, such is referred to as a Common -Cathode Display but when the Anode terminals are all connected together we have the Common Anode Display.
Fig a: Common - Cathode Display
Fig b: Common - Anode Display
The Image below shows a look - up table for our segment display to guide us in writing our code. Every hex value represents a pattern for every digit. Every LED segment is represented with an alphabet from a to g and so if we want to display the number "7" we will turn ON segments a, b, and c by sending a 1 to these segments i.e. for "x g f e d c b a" we have " x 0 0 0 0 1 1 1" respectively which is equivalent to 0x07 in hexadecimal and must reflect in our code ( "x" is the eight unused bit ) . A binary to hexadecimal calculator will help here .The image below gives a better description.
Our Aim in this project is to display 0 to 9 on the segment display over and over again with a second delay.
CODE:
/*
Name: 7 - Segment display with PIC MCU
Author : Daniel Oluwole
(C) 2020 Danitronics
danieloluwole51@gmail.com, danieloluwole51@yahoo.com
Mobile: +234 8188508765.
Notes : Our aim is to display numbers 0 -9 on a 7 - segment display
*/
//DECLARE VARIABLES AND ARRAYS
unsigned char segment[]={0x3F,0x06,0x5B,0x4F,0x66,0x6D,0x7D,0x07,0x7F,0x6F};
unsigned char i;
void main()
{
TRISD = 0;// Set PORTD as Output
while(1)
{
for(i = 0; i< 10; i++)
{
PORTD = segment[i]; // go through array
delay_ms(1000); // 1 sec delay
}
}
}
